Illumination Data
|
Color temprature: |
3000K | 4000K |
|
Lumen output: |
600 LM | 1200 LM |
|
CRI |
80 |
|
Beam angle |
90°flood |
Fusion

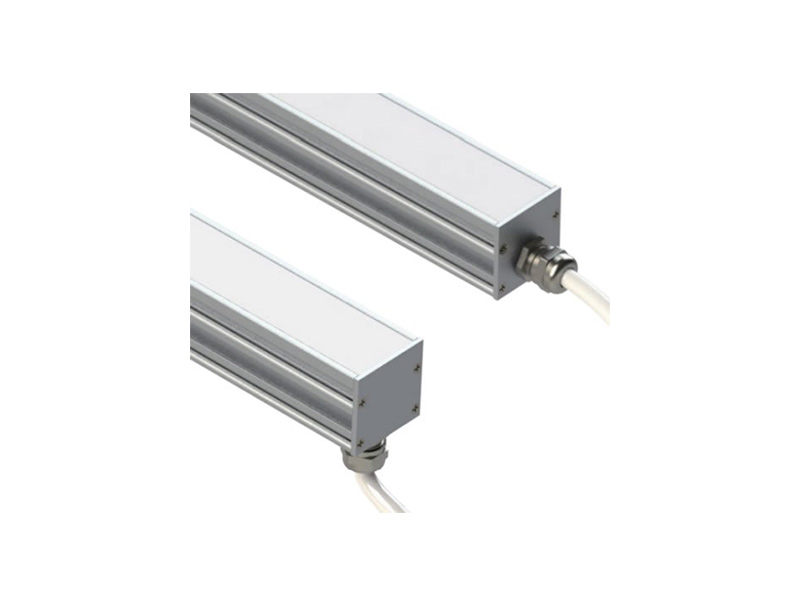

Fusion is an ideal luminaire for recessed ground application, also for drive-over use. Installation by means of a recess box supplied separately. It can be used to make straight lines.
Description
Physical Specification
|
Material Finish |
Die cast aluminium |
|
Diffuser |
Tempered Glass |
|
Optics |
None |
|
Ingress protection (IP) |
67 |
|
Impact Protection (IK) |
10 |
Electric Characteristics
|
Power |
6 Watt | 12 Watt |
Installation
|
Installation |
Inground recessed |
Specifications
Photometric Data
Downloads
Photometric Data
Fusion Data Sheet
Coding System
